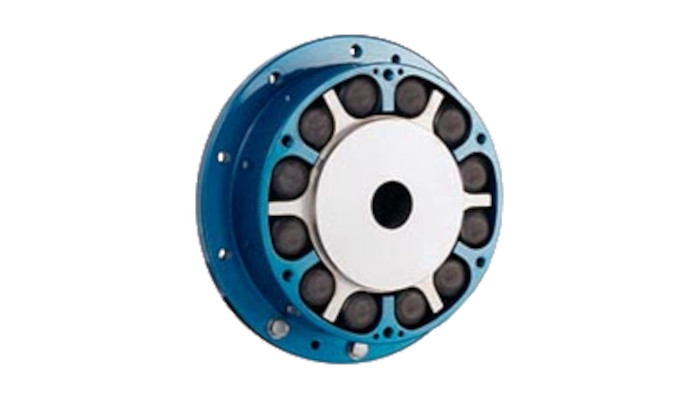

Novus Gear N-Flex RB Couplings
Manufactured in SG iron for torques up to 41kNm. Novus Gear's N-Flex RB general purpose range of couplings, are incredibly cost effective.
The Standard Range Comprises
- Shaft to shaft
- Shaft to shaft with increased shaft engagement
- Flywheel to shaft
- Flywheel to shaft with increased shaft engagement
Applications
- Generator sets
- Pump sets
- Compressors
- Wind turbines
- Metal manufacture
- Bulk handling
- Pulp and paper industry
- General purpose industrial applications
Features
- Intrinsically fail safe
- Control of resonant torsional vibration
- Maintenance free
- Severe shock load protection
- Misalignment capability
- Zero backlash
- Low cost
Benefits
- Ensuring continuous operation of the driveline in the unlikely event of rubber damage
- Achieving low vibratory loads in the driveline components by selection of optimum stiffness characteristics
- With no lubrication or adjustment required resulting in low running costs
- Avoiding failure of the driveline under short circuit and other transient conditions
- Allows axial and radial misalignment between the driving and driven machines
- Eliminating torque amplifications through precompression of the rubber elements
- The RB Coupling gives the lowest lifetime cost
Construction Details
- Cast Iron to BS 17 grade
- Spheroidal graphite to BS 2789 Grade 420/12
- Separate rubber elements with a choice of grade and hardness with SM70 shore hardness being the standard
- Rubber elements which are totally enclosed and loaded in compression
