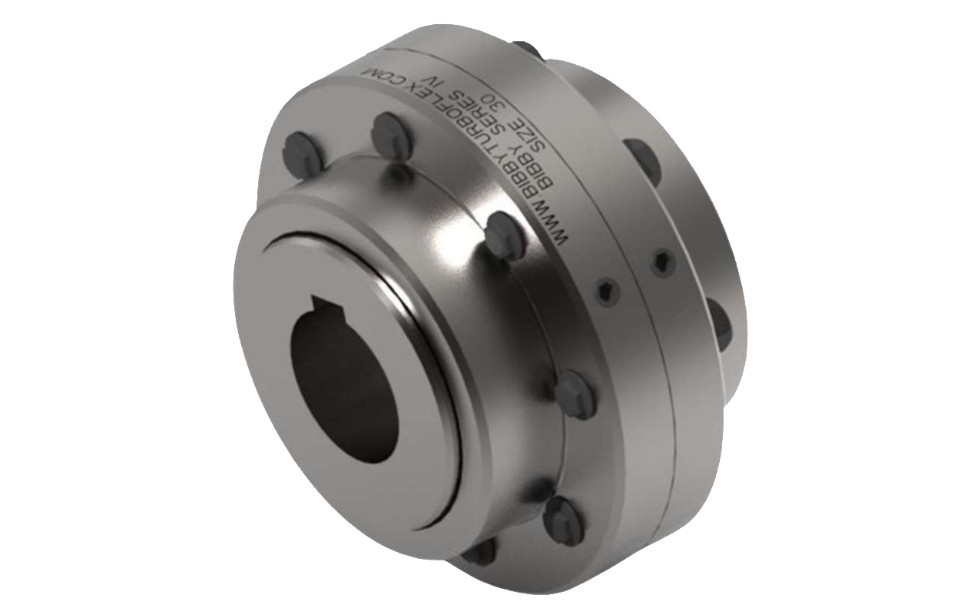

Bibby Series IV Gear Couplings

-image

Series F Flexible Coupling is designed with bolted center flanges to facilitate installation and alignment. Optimum separation of gear meshes permits high parallel offset capacity. Flanged-sleeve design makes possible minimum distance between bearing housings to facilitate shaft alignment. The coupling is optimized for the greatest torque capacity.

Application

Meets requirements of all standard applications for shaft sizes up to 275 mm. Compensates for both angular misalignment and parallel offset

Features

  • ±3/4° angular misalignment capacity per gear mesh
  • Torque ratings at full misalignment - more than normal requirements for average applications
  • Accurately machined medium carbon steel hubs and sleeves
  • Positive-type 0-ring seals keep lubricant in...contaminants out. Seals enshrouded to prevent damage
